With UR5 there is a bug in the UI that does not show SMB file shares when you try to deploy HA VM or do storage migration to SMB share. Functionality was still working when you use PowerShell. Continue reading “Install SMB Share SCVMM 2012 R2 UR5 UI Hotfix”
Just want to tip you that SCU Europe 2014 (aka Community MMS) sessions are now available on Channel9. All 60 sessions are available: Continue reading “System Center Universe (aka Community MMS) Europe 2014 Now Available on Channel9”
There is a new MP out and it is Windows Server File and iSCSI Services 2012 R2. Besides the support for Windows Server 2012 R2 this management pack adds monitoring for Work Folders. You can download the MP and its guide from here.
The last issue I’ve stumbled upon with System Center is with VMM component.
- You have SCVMM 2012 SP1 UR2 installed
- You have Windows Server 2012 Hyper-V for hosts
- You use SMB 3.0 share for storing virtual machines
- Some or all of your virtual machines does not use FQDN path to their vhd/x files
- You’ve added your File Server in VMM by FQDN or NetBIOS Name

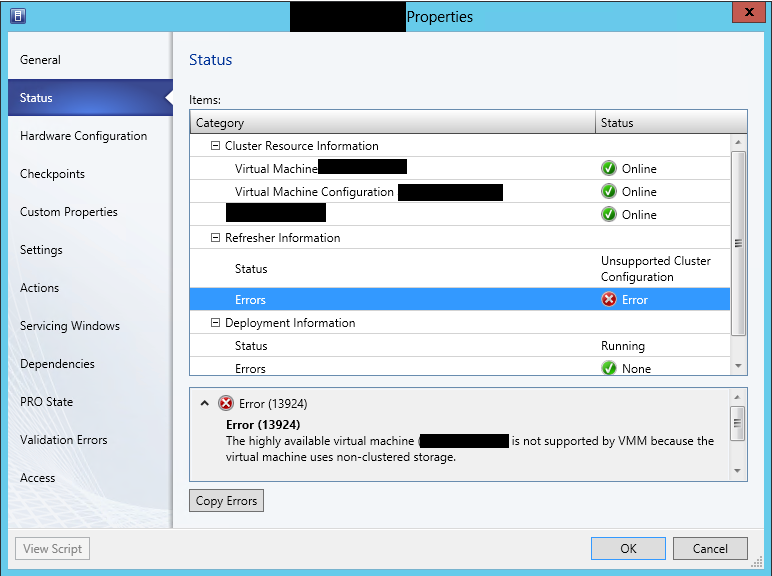

- You receive the following error: Error (13924) The highly available virtual machine (VMNAME) is not supported by VMM because the virtual machine uses non-clustered storage.

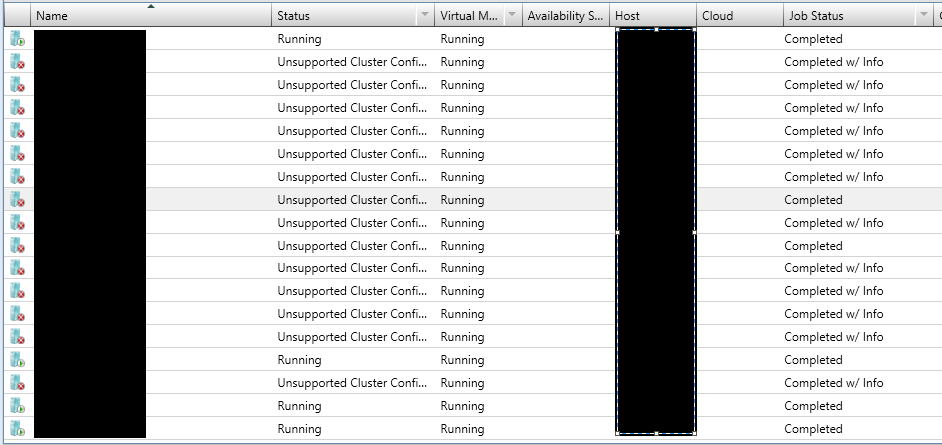

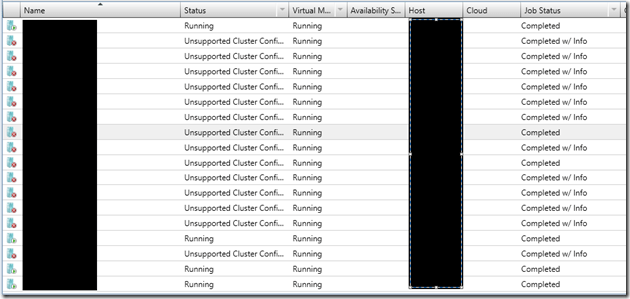

- Some or all of your virtual machines show as Unsupported Cluster Configuration
I’ve managed to resolve this issue by executing the following steps:
1. Make sure you’ve added your file server in VMM by FQDN. If it is not added by FQDN you have to add it.
2. Create new share. You can create it on the same server. Give the share appropriate permissions.
3. Locate the new share in VMM. Add it as storage location to your hosts/clusters.
4. After is added make sure it show green in the properties of the hosts/clusters.
5. Storage migrate all your virtual machines from the old share to new share. For the machines with status Unsupported Cluster Configuration you can change the status to Running by live migrating them trough the Failover Cluster console.
6. After storage migration of each virtual machine refresh it and make sure in the properties of the machine in Status tab all is green.
7. After successful migration of all virtual machines you can remove the old share from the hosts/clusters and delete it from the File Server.

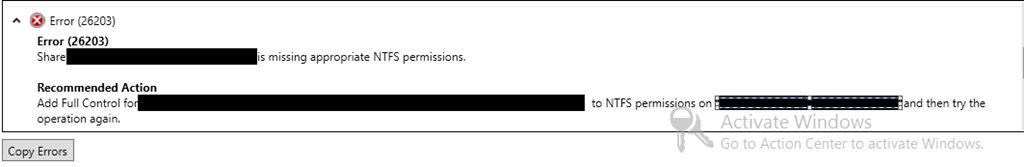

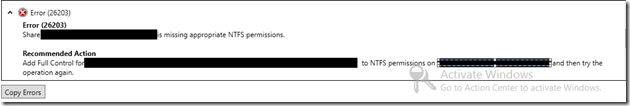

I’ve also may had problems with the permissions on the old share but it is easier to create new share than fixing permissions on existing share with running virtual machines.
The information is provided ‘AS IS’ with no warranties and confers no rights. Keep in mind that your case may be similar and this solution may not work for you.
Software I’ve used:
- Windows Server 2012 with latest updates
- SCVMM 2012 SP1 UR2
- File Server with SMB share
This Jump Start Training was held live last month and now it is available as a recordings. This course is led by Microsoft Senior Technical Evangelist Rick Claus and Ed Liberman from TrainSignal. The course is divided in 12 topics which can be found as separate videos here.
