Microsoft Azure Operational Insights Preview Series – Collecting Logs from Azure Diagnostics (Part 16)

Azure, Azure Operational Insights Preview, Hybrid Security, Log Analytics, Microsoft, Operational Insights, Operations Management Suite, Software, System Center, System Center Operations Manager 2 Minutes

Previously on Microsoft Azure Operational Insights Preview Series:

This blog post is about a feature you may know or may not know about OpInsights. Besides ingesting data trough agents or SCOM OpInsights can ingest data trough Azure Storage as well. And you can place data in Azure Storage trough a Azure feature like Azure Diagnostics. So lets see how all this works.

First you will need to link your OpInsights workspace to your Azure Subscription and Add Azure Storage Account to it. You can check Part 10 of my series for this but your Azure you should have  the following configured for the storage:

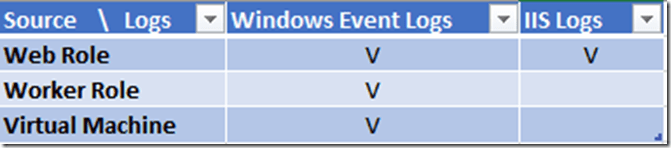

Now that we have this in place let’s see what we actually can ingest. Azure Diagnostics can collect different types of data but currently OpInsights can ingest some of it. Currently the matrix of what logs can be ingested and from what source is the following:


Now let’s see how to configure Windows Event logs for a VM.

To do this you will need to go to the Azure Preview portal:

https://portal.azure.com

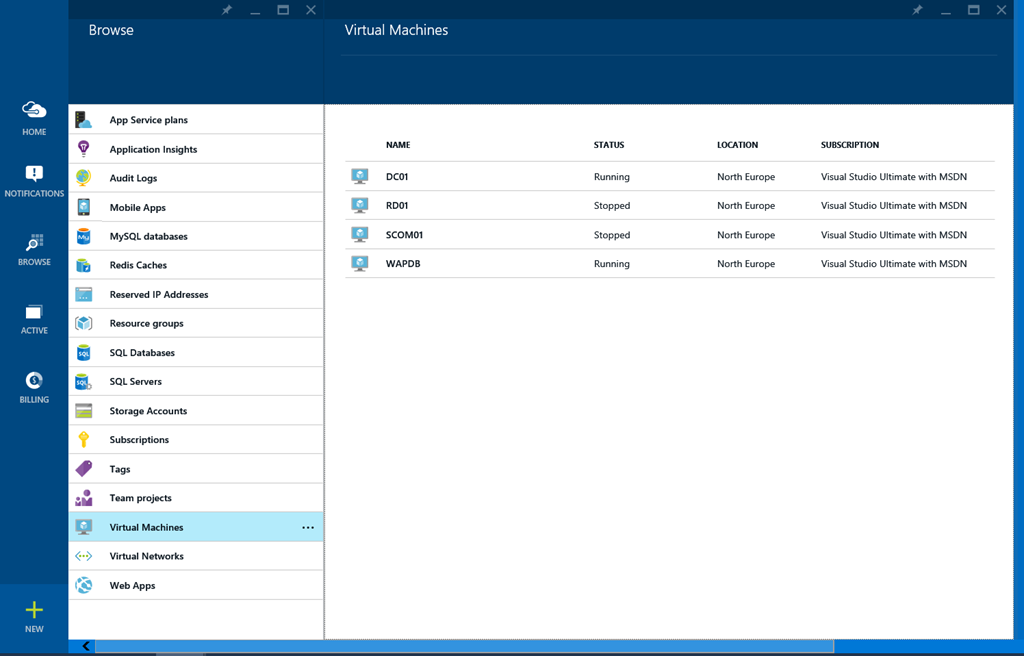

Click Browse –> Virtual Machines

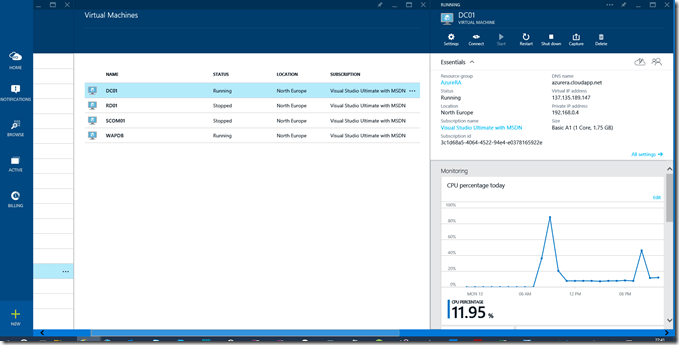

Select one of the Virtual Machines for which  you want to activate Azure Diagnostics:


Click on the monitoring tile:

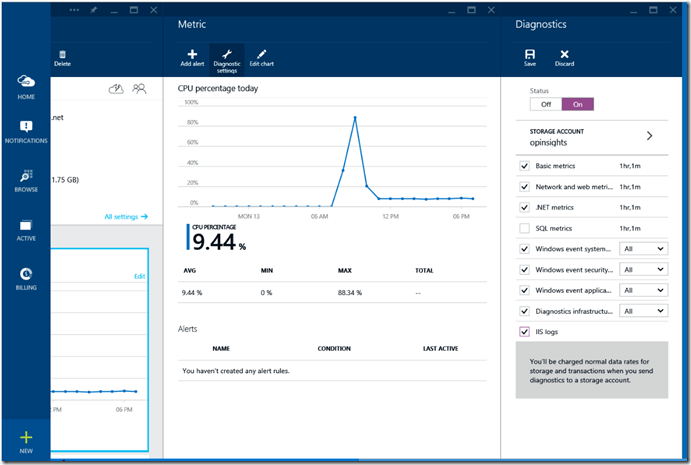

Select Diagnostics Settings and change status from Off to On:


Basically for Virtual Machine if you enable every Windows event log you can gather them. In my case I’ve also selected to collected everything from Verbose to Critical you can of course can decide to collect anything above warning.

You will also need to place these logs to the same storage account that is used by Operational Insights. When you are ready click save.

After around one hour if you execute the following query:

*  | Measure count() by SourceSystem

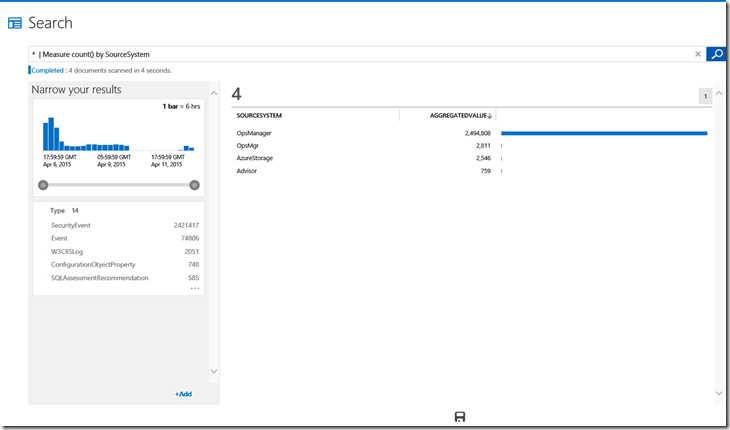

You should see Events from source Azure Storage showing up:


Of course you can enable Azure Diagnostics even with Azure PowerShell. You can find example for this along on how to enable Azure Diagnostics on Web roles and Work roles on the Azure Operational Insights documentation site.

Published by Stanislav Zhelyazkov

Stanislav Zhelyazkov has been working in IT since 2007. Stanislav has started his IT career as a Help Desk Specialist in 2007 while studying Informatics in the University of Ruse. He also worked in HP Enterprise Services (now known as DXC), maintaining large corporate IT infrastructures for clients in Holland, Switzerland and Germany and was involved in a Private Cloud project based on MS Hyper-V and System Center. He was also in the role of Principal Consultant in Lumagate developing and consulting companies on Azure, OMS, management and Private clouds. Currently he is Cloud Infrastructure Engineer at Sentia Denmark. Stanislav is active community member at MSDN forums providing answers on Azure. His blogposts can be found at www.cloudadministrator.net or www.systemcentercentral.com.
