Authentication Error has Occurred (Code : 0x607) on Remote Console After you Apply UR4 for SPF 2012 R2

Article, Hyper-V, Microsoft, Remote Desktop Services, Service Provider Foundation, Software, System Center, System Center Orchestrator, System Center Service Provider Foundation, System Center Virtual Machine Manager, Windows Azure Pack, Windows Servers 2012 R2 1 Minute

If you are applying Update Rollup 4 for System Center Service 2012 R2 Service Provider Foundation and you have have configured Remote Console to use IPv4 by using this solution (by Marc van Eijk) you may receive the following error when you try to connect to VM:


An authentication error has occurred (Code: 0x607).

This can be easily fixed by editing the re-write rule on the SPF web config file.

Just open the web config file of SPF (usually located here C:\inetpub\SPF)

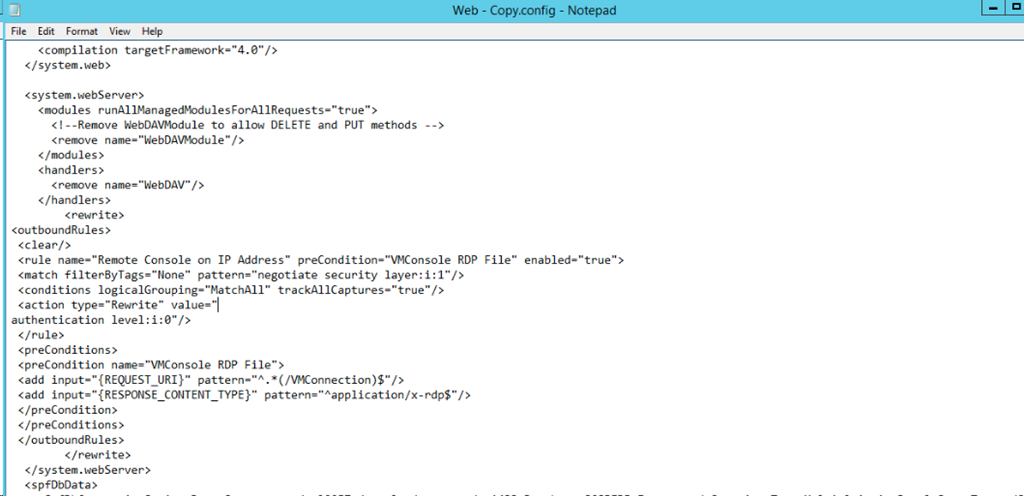

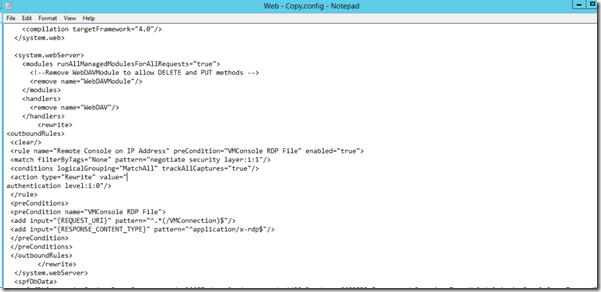

Find the re-write rule:

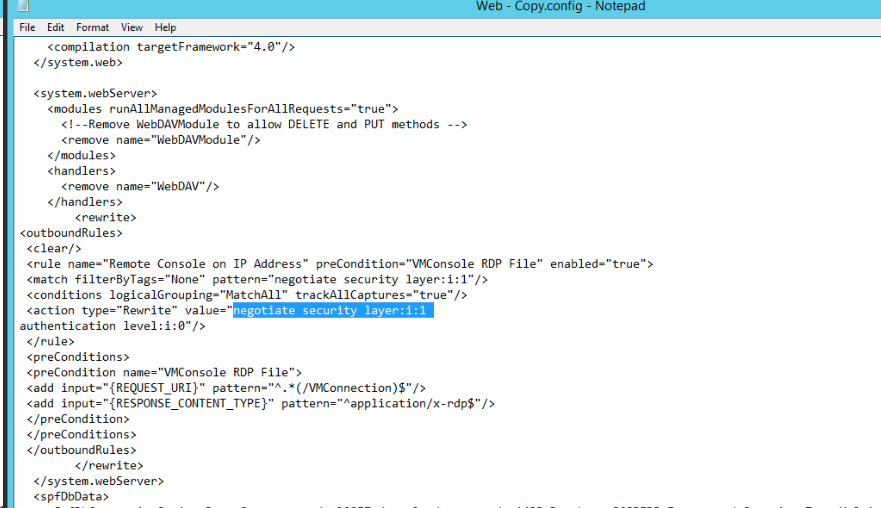

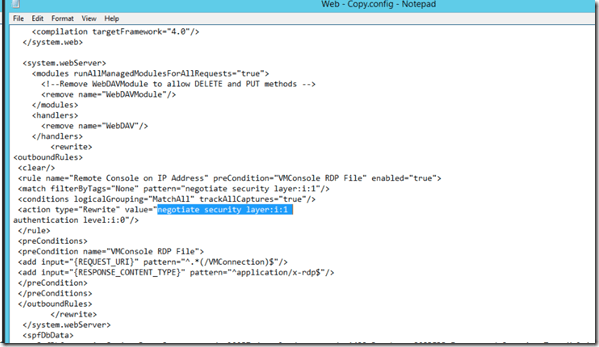

remove “negotiate security layer:i:1 “

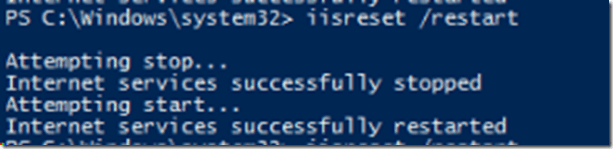

Save the file. Do IISReset


After that you will be able to connect trough Remote Console.
